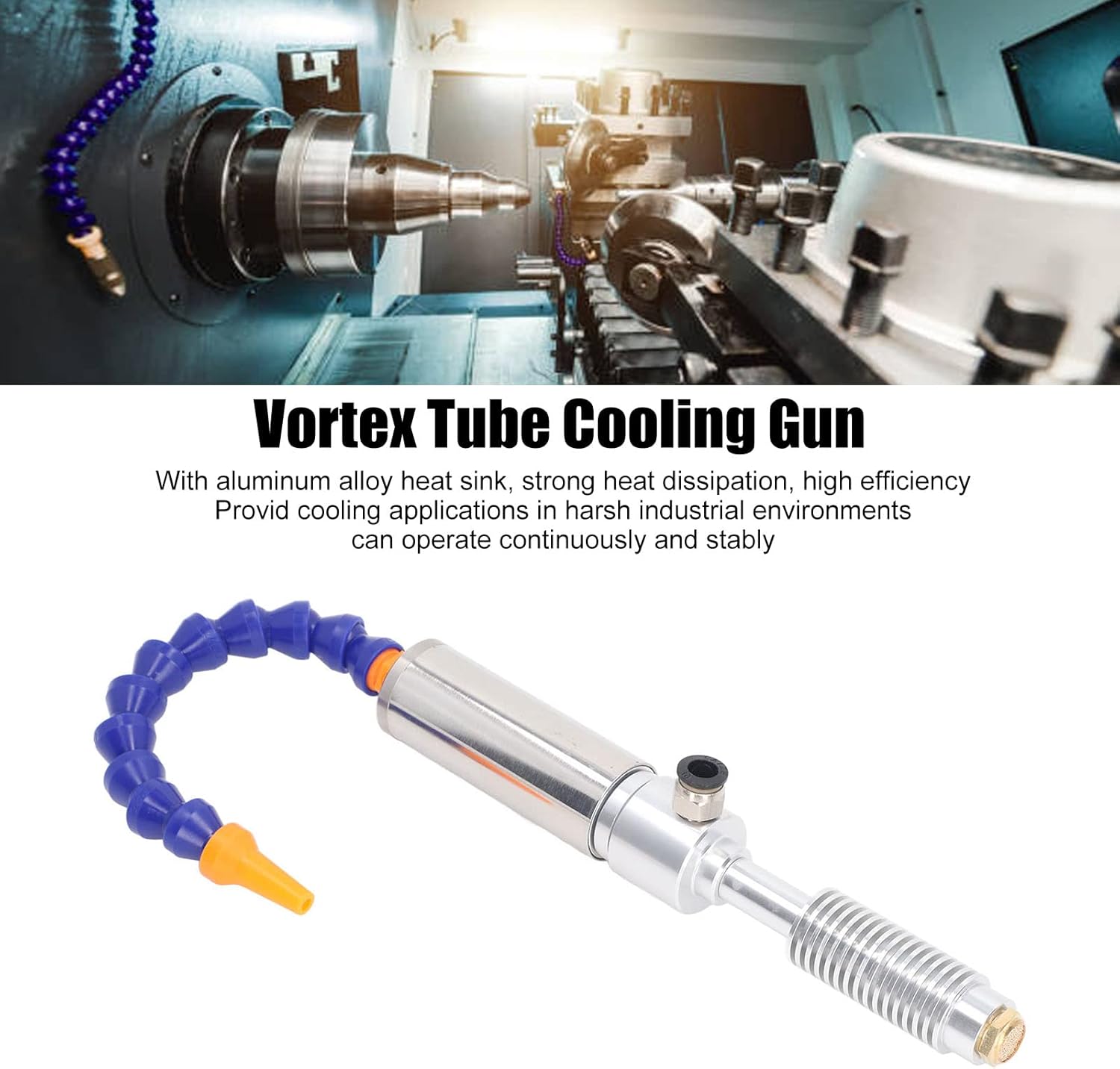

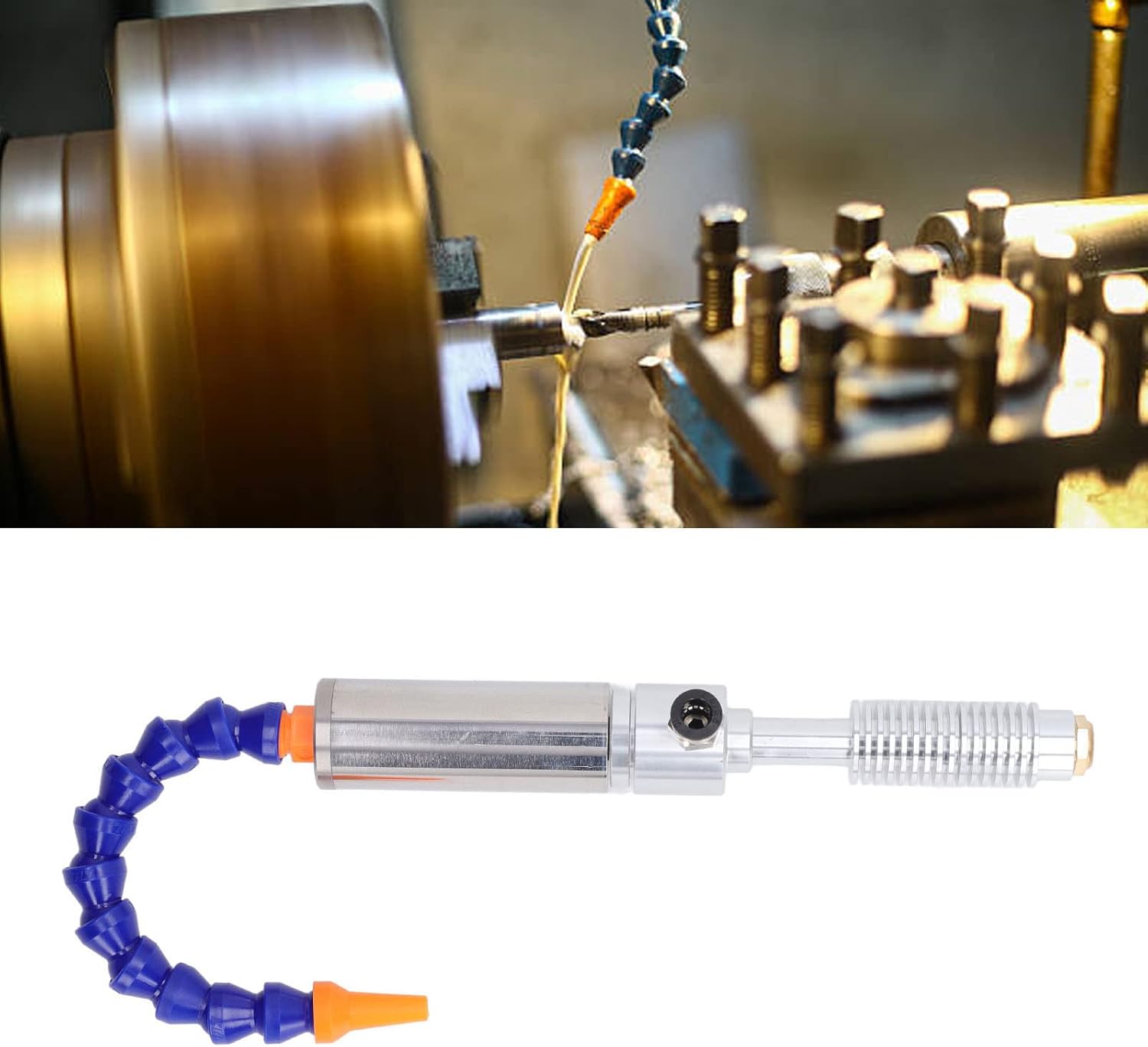

WALFRONT 3 Pcs Set Tube Air Cooler Aluminum Alloy Heat Sink Type Cold Air Cooling 6.9 Bar 1100BTU for Harsh Industrial Environments
4.4 (97 items)
Limited Time Sale$83.89 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210860423 | Release Date | 2026/04/04 | List Price | $55.92 | Model Number | 210860423 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Spec: Item Type: Cold Air Cooling Material: Aluminum Alloy Model: TV20015G Air Pressure: 6.9 Bar Intake Air Volume: 430L/min (15cfm) Maximum Cooling Capacity: 1100BTU (300Kcal/Hr) Type: Aluminum Alloy Heat Sink Type Inlet Hole: Female Thread G1/4 Cold Air End: Female Thread G3/8 How to Use: 1. The test temperature difference of tube is the limit temperature difference inside the cold air port under standard conditions, and cannot be used as the operating temperature. The specific operating temperature can be adjusted through the internal regulating valve at the hot air end. Adjustment Method: Unscrew the hot end muffler and rotate the built in regulating valve. The temperature increases clockwise and decreases counterclockwise. 2. When the factory temperature is set to air pressure of 0.69MPa, the temperature difference is ‑25℃, which can be adjusted automatically if lower temperature is required. Note: The cold air temperature difference of ‑25℃ does not mean that the cold air temperature is ‑25℃ below 0, but refers to the temperature drop. For example, when the ambient temperature is 25℃, and the temperature difference is ‑25℃, the actual cold air temperature is 0℃. 3. For the best use effect of tube, it is recommended to provide 0.6MPa to 0.7MPa compressed air, ensure that the air volume is sufficient and the air is filtered and dried. PackageList: 1 x Tube 1 x Connector 1 x Universal Tube
- RAPID COOLING: The tube air cooler could generate cold air rapidly and can be quickly adjusted through valve.
- GOOD HEAT DISSIPATION: tube is equipped with aluminum alloy heat sink, with strong heat dissipation and high efficiency.
- ALUMINUM ALLOY BODY: Cold air is made of aluminum alloy, which is oxidation and high temperature resistants, light and sturdy.
- HIGH SAFETY: The air cooling has no moving parts, no electricity, no chemicals, and no electric sparks, can be used with confidence.
- STABLE: Cold air can provide cooling in harsh industrial environments, allowing continuous and stable operation.
| Item Weight | 1.42 pounds |
|---|---|
| Manufacturer | WALFRONT |
| Power Source | AC/DC |
| Item model number | WALFRONTkd0xcbzony |
| Batteries Required | No |
| Package Dimensions | 10.63 x 6.69 x 1.97 inches |
| Included Components | no |
