uxcell Rotary Cord Switch AC 250V 2A Slide Control Lamp Dimmer 100-Watt Black
4.1 (136 items)
Limited Time Sale$6.95 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210097338 | Release Date | 2026/04/02 | List Price | $4.64 | Model Number | 210097338 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

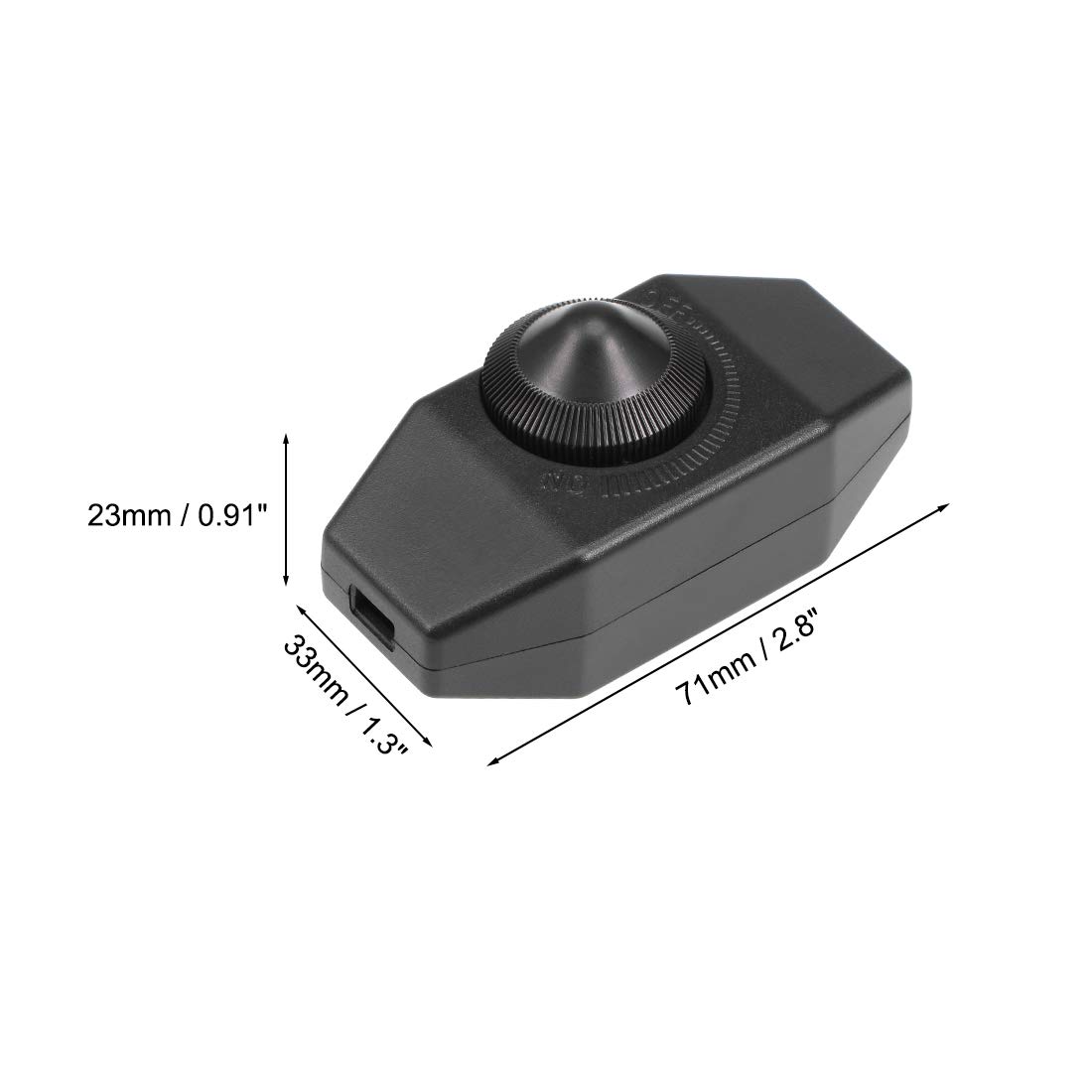

Tired of reaching up under the lampshade to switch on your favorite lamp? Mount an in-line switch on the cord! Description:-This inline switch is designed to replace an old broken switch or add a switch to a light or appliance that did not have one before.-Dimmers reduce energy consumption and extend bulb life.-This table top dimmer switch is an easy way to add the ambiance of dimming to a table or floor lamp.-Single pole switch, great for cable such as H03VVH2-F 2*0.5mm2, H03VVH2-F 2*0.75mm2, etc..-Popular used in home lighting. great for controlling brightness of incandescent, halogen, dimmable LED and dimmable CFL bulbs. How to Install an in Line Switch?-Weld the cable to the terminal.-Press the switch halves together and tighten with screws. Recommended Load:100-Watt Switch: Fit for 15W-70W load150-Watt Switch: Fit for 15W-120W load300-Watt Switch: Fit for 15W-260W load Specification:Rating Power (Max.): AC 250V 2A 100WMaterial: PCWorking Temperature: -40℃-85℃Withstand Voltage: >=2500V/5S/0.025mAFlame Rating: UL94V2Size: 71 x 33 x 23mm / 2.8" x 1.3" x 0.91" (L*W*T)Fit for the wire diameter less than or equal to 2mm.
- 100 Watt Full Range Electro-Mechanical Incandescent Lamp Cord Dimmer.(Note: The wire connection is welding.)
- This Dimmer switch is suitable for reduce energy consumption and extend bulb life
- great for controlling brightness of incandescent, halogen, dimmable LED and dimmable CFL bulbs
- One pole connection, easy to install. Rotary the button to control the light
- Applies to H03VVH2-F 2*0.5mm2, H03VVH2-F 2*0.75mm2, etc. Fit for the wire diameter less than or equal to 2mm.
| Color | Black |
|---|---|
| Model | 1 |
| Wattage | 300 watts |
| Terminal | Button |
| Brand Name | uxcell |
| Unit Count | 1 Count |
| Item Weight | 0.01 Ounces |
| Switch Type | Dimmer Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | uxcell |
| Actuator Type | Rotary |
| Material Type | Polycarbonate |
| Mounting Type | Cord Mount |
| Connector Type | Screws |
| Control Method | Touch |
| Current Rating | 2 Amps |
| Operation Mode | manual |
| Item Dimensions | 2.8 x 1.3 x 0.91 inches |
| Number of Items | 1 |
| Contact Material | Plastic |
| Operating Voltage | 250 Volts |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 85 Degrees Celsius |
| International Protection Rating | IP00 |
