Original New THK Cam Follower CF30 CF30UU-AB CF30UUR-AB CF30VUU-AB CF30VUUR-AB Needle Roller Bearings M30x1.5,Outer Diameter 80mm,Outer Ring Width 35mm,Overall Length 100mm (CF30UU-AB)

The cam follower is a compact and highly rigid bearing with a shaft. It contains needle rollers and is used as a guide roller for cam mechanisms or straight motion. Since its outer ring rotates while keeping direct contact with the mating surface, this product is thick-walled and designed to bear an impact load. Inside the outer ring, needle rollers with precision cages are incorporated. This prevents the product from skewing and achieves superb rotation performance. As a result, the product is capable of easily withstanding high-speed rotation. There are two types of the outer ring shape: spherical and cylindrical. The spherical outer ring easily absorbs distortion of the shaft center when the cam follower is installed and helps lighten unbalanced loads. The cam follower is used in a wide range of applications such as the cam mechanisms of automatic and dedicated machines, as well as transfer equipment, conveyors, bookbinding machines, tool changers of machining centers, pallet changers, automatic coating machines, and sliding forks in automated warehouses. A hexagonal socket is provided on both studends, and a grease nipple for greasing is fitted o the inside. Therefore, lubrication and mounting from both directions is possible. It is a popular type of Cam Follower provided with a driver groove on the head of the stud. With previous models it was necessary to fabricate a jig in order to install a plug or grease nipple.The Model CF-AB Cam Follower with grease nipples comes equipped with grease nipples on both sides, so it can be used immediately, without modification. An Allen wrench can be used to anchor the stud from either the head or the threaded end, and it can be lubricated from either end as well. This ensures that there will be adequate space to install the unit and perform maintenance, improving work efficiency.

• The cam follower is a compact and highly rigid bearing with a shaft. It contains needle rollers and is used as a guide roller for cam mechanisms or straight motion
• Since its outer ring rotates while keeping direct contact with the mating surface, this product is thick-walled and designed to bear an impact load
• Inside the outer ring, needle rollers with precision cages are incorporated. This prevents the product from skewing and achieves superb rotation performance. As a result, the product is capable of easily withstanding high-speed rotation
• There are two types of the outer ring shape: spherical and cylindrical. The spherical outer ring easily absorbs distortion of the shaft center when the cam follower is installed and helps lighten unbalanced loads

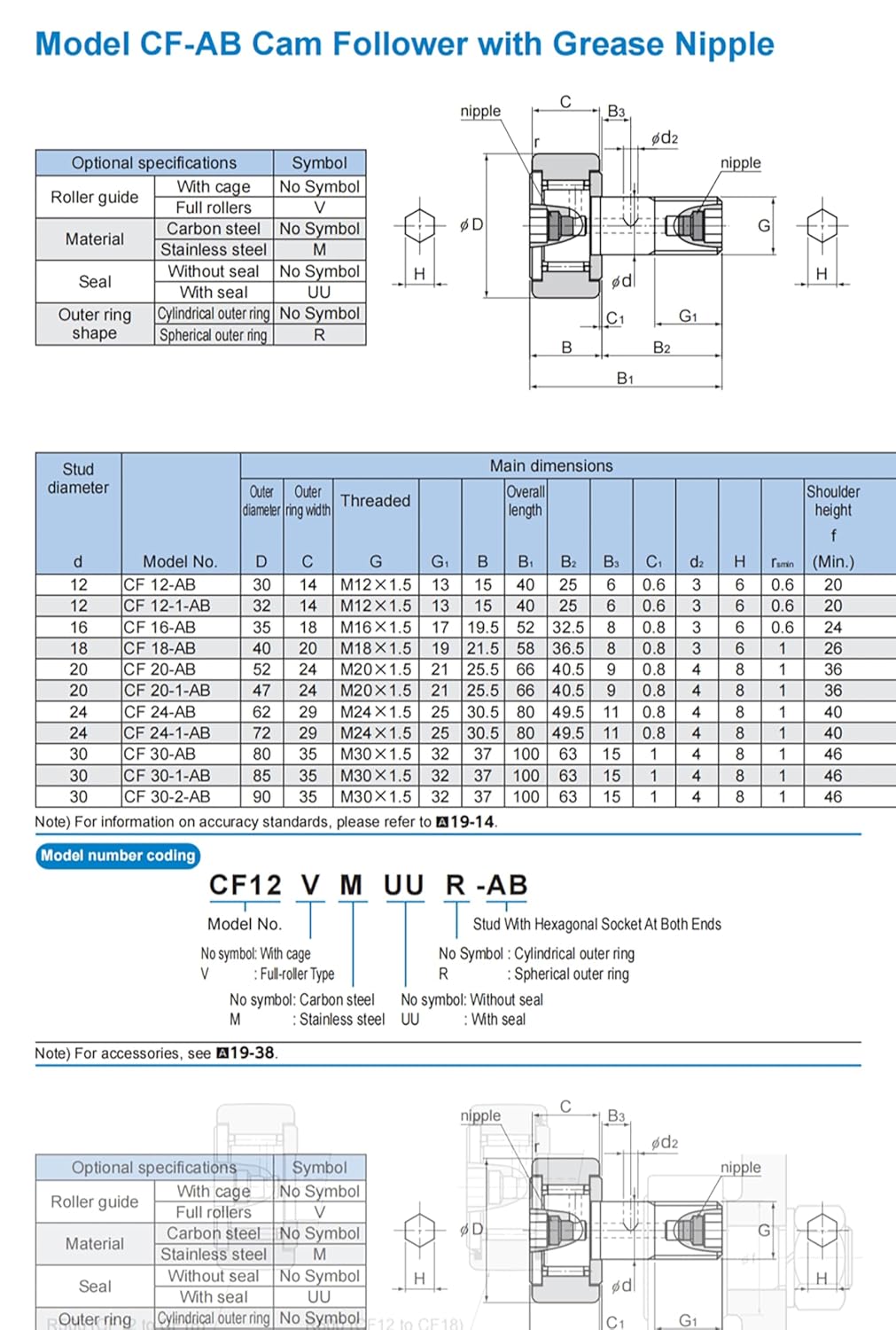

• With previous models it was necessary to fabricate a jig in order to install a plug or grease nipple.The Model CF-AB Cam Follower with grease nipples comes equipped with grease nipples on both sides, so it can be used immediately, without modification. An Allen wrench can be used to anchor the stud from either the head or the threaded end, and it can be lubricated from either end as well. This ensures that there will be adequate space to install the unit and perform maintenance, improving work efficiency
