Motherboard Diagnostic Card PCIe LPC DEBUG Tester Kit with LED Indicator for Computer Repair and PC Hardware
4.5 (144 items)
Limited Time Sale$20.83 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209086244 | Release Date | 2026/03/29 | List Price | $13.89 | Model Number | 209086244 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

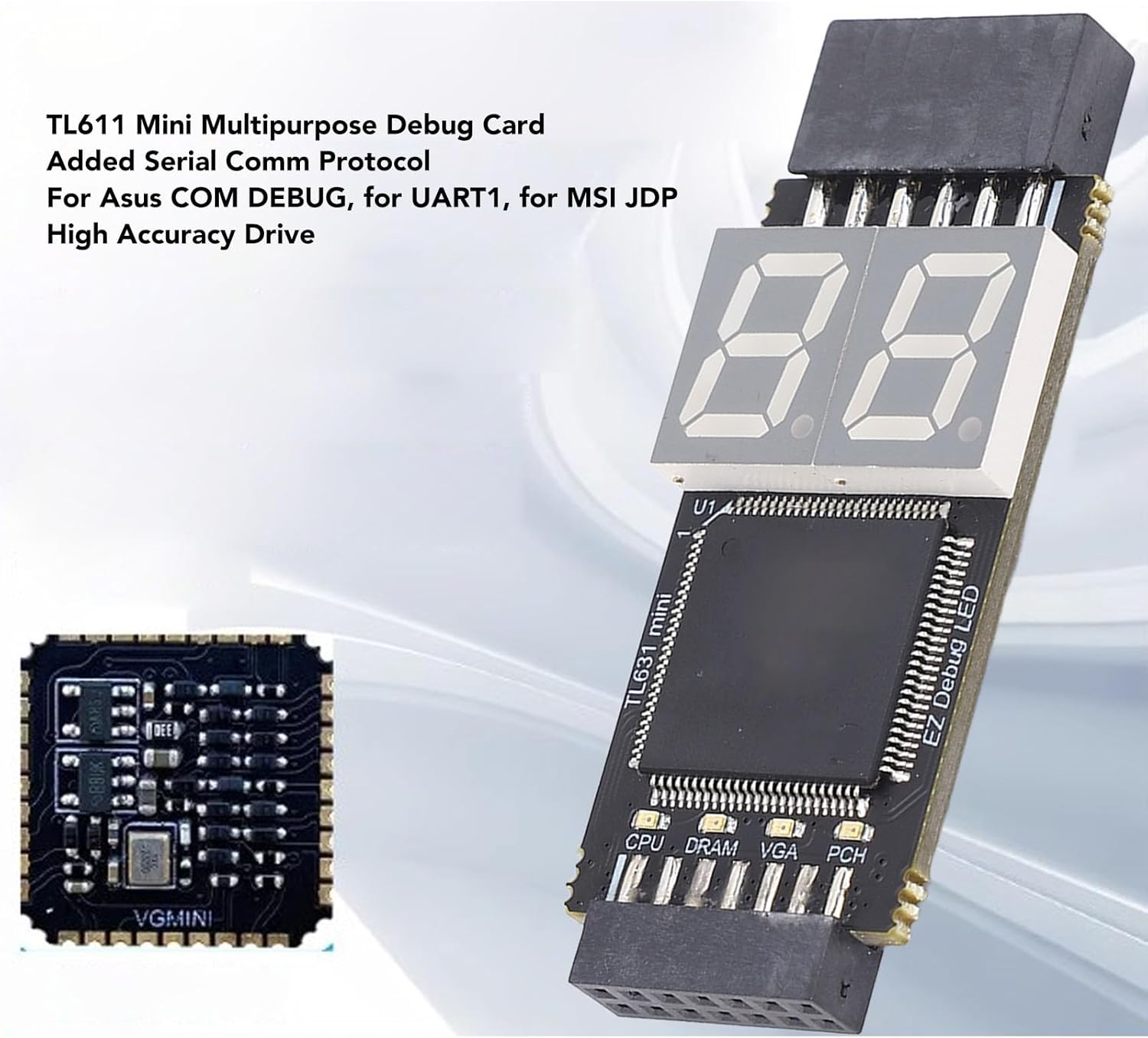

- Serial Comm Protocol: This laptop motherboard analyzer diagnostic card adds a serial communication protocol—including DEBUG for UART1 and —expanding its range of applications. Whether you’re troubleshooting motherboard issues or conducting in-depth diagnostics, this protocol support lets the card interface effectively with relevant systems. It enhances the card’s functionality, making it a versatile tool for handling various diagnostic tasks in repair or maintenance work.
- Strong Compatibility: Designed for broad use, this laptop motherboard analyzer diagnostic card supports PCI E, mini PCI E, and LPC interfaces, plus all PCI slots. Its strong compatibility means it works with a wide range of laptop motherboards, eliminating the need for multiple specialized cards. Whether you’re working on older or newer motherboard , this card fits seamlessly, boosting efficiency in repair and diagnostic processes.
- Good Performance: This laptop motherboard analyzer diagnostic card delivers reliable performance with a high recognition rate, plus it supports automatic recognition of power modules. Its high efficiency means it streamlines diagnostic work—you spend less time on manual setup and more on resolving issues. Whether you’re a professional technician or handling routine maintenance, its strong performance ensures accurate, fast results every time.
- LED Indicator: Equipped with multi-channel detection and multiple LED indicators, this laptop motherboard analyzer diagnostic card clearly displays the status of key components—power supply, motherboard, , memory, video card, and hard drive. The LED lights let you quickly identify issues without complex setup, speeding up the diagnostic process. It simplifies troubleshooting by providing real-time, easy-to-read status updates for each component.
- Included Tools: This laptop motherboard analyzer diagnostic card kit comes complete with the diagnostic card, a laptop adapter card, connection cables, and ribbon cables. Everything you need for setup is included, making connection and operation easy—no extra tools to purchase. The kit ensures convenience and practicality, letting you start diagnosing laptop motherboards right out of the box, saving time and effort.
| Brand | FTVOGUE |
|---|---|
| Model Name | FTVOGUE4og06ax7ib |
| Chipset Type | AMD 785E |
| Manufacturer | FTVOGUE |
| Model Number | FTVOGUE4og06ax7ib |
| Item Type Name | Internal Components |
| Number of Ports | 5 |
| Processor Socket | Socket AM2 |
| Total PCIe Ports | 1 |
| Compatible Devices | Laptop |
| Compatible Processors | AMD Ryzen, AMD Ryzen Mobile |
| RAM Memory Technology | DRAM |
| Memory Slots Available | 2 |
| Graphics Card Interface | PCI Express |
| Main Power Connector Type | 4-pin |
| System Bus Standard Supported | SATA 1 |
