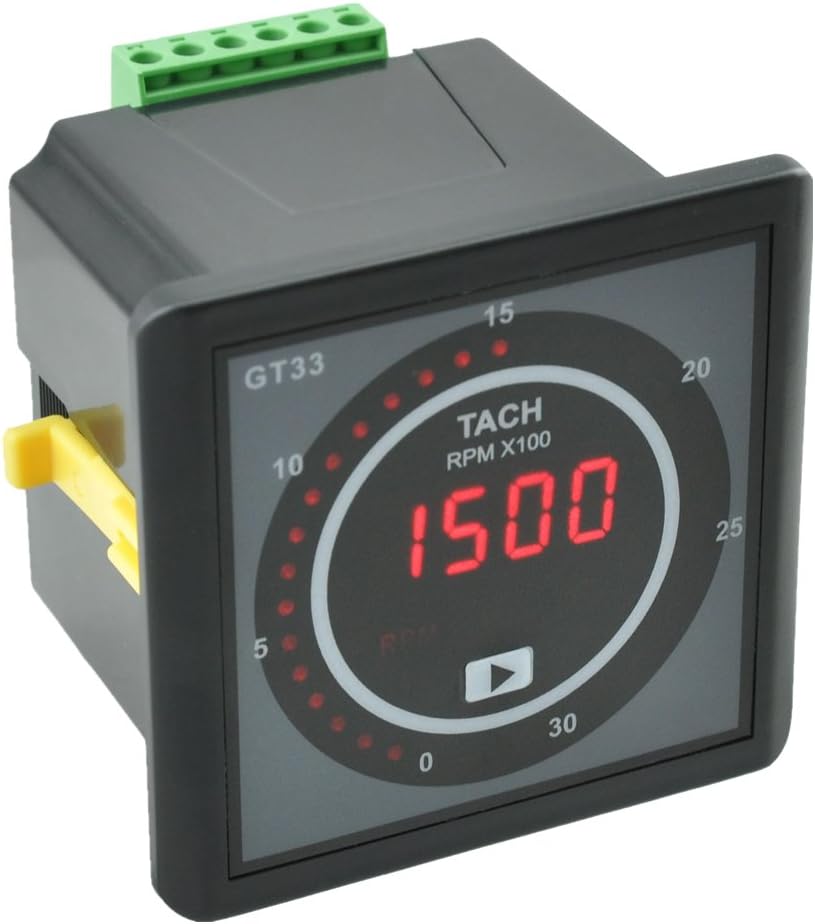

GT33 Engine Generator Meter Monitor RPM Frequency Hour LED Display Panel DC 8-36V with Flywheel Teeth Mode Set

Brief Introductio:GT33 is a light weight and low cost module used for checking and display RPM, frequency and accumulation hours of the genset. The switch on its back can adjust and set parameters in order to meet different requests from users. Besides, it uses the European-style teminals for connection which is more convenient for installation and detachment.Features:LED circuit can demonstrate rough RPM4-digital tube can demonstrate RPM,Frequency and Accumulating Hours (Optional)Three double-color LED display;Flywheeltheeth and alarm value settings through Buttons;RPM,Frequencycan be switched.Over-speedAlarm output and demonstration.Dial switch setting and parameters modification.Parameter:Engine RPMGenerator FrequencyHoursRange and Accuracy:RPM: 0-3000RPM(RPM/min), RANK: 1.0Specification:Power: DC8～36VConsumption Power: MAX：1WOperation Temperature:-20℃ ～ 65℃Size (W* H * D)：78mm* 75mm * 76mmInstallationSize(W * H)：67mm* 67mmNetWeight: 110G

• Light weight and low-cost module for displaying generator and engine RPM, Frequency and Accumulated Time
• Parameters can be set easily by the front-face bottons and swithes on the back to meet different requests
• RPM and Frequency can be convered
• Over Speed & Over Frequency Alarm and Protection
• Easy operation and installation, Size: 78*75*76mm (3.07*2.95*2.99in) Cut-out size: 67*67mm (2.64*2.64in)
