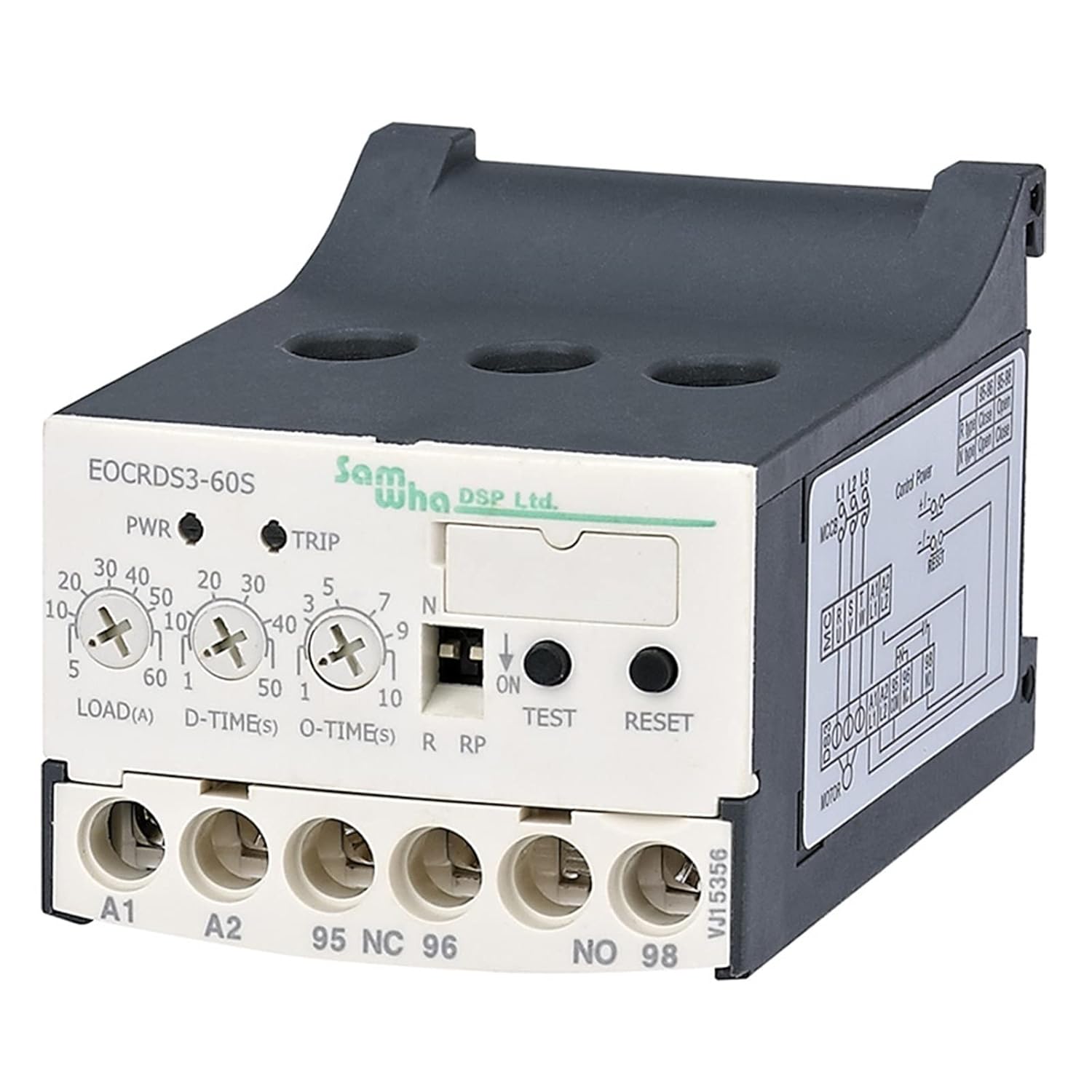

EOCR-DS3 Slim Electronic Overload Relay Motor Protector Thermal(3-30A)

relayFeaturesMCU(Microprocessor Control Unit)Slim compact design Multiple Protection FunctionsIndependently Adjustable Starting Trip Delay & Operating TimePWR Trip Indication LEDTrip Indication and Trip Cause DisplayManual Instantaneous Electrical Remote ResetAmbient InsensitiveLow Energy ConsumptionNo Volt Release / Fail-safe Operation)N TypeAC / DC Power Supply Universal3-Phase Dedicated3-Phase DedicatedUsed for- Low Voltage Induced Electromotor (600V Level) Protective Relay- Break-Down Watch Current Relay- Alternative Replacement for the Existing RelayProtetcionProtective Item Operating (Trip) TimeOver-current = O-TIMEStall = 4 set or lessPhase Loss = D-TIMEReverse phase = 0.1 setLEDAmmeter Function:After the motor runs smoothly, turn the overcurrent setting knob slowly counter clockwise to the red indicator light, which is 100% of the actual running current. And then turn the knob clockwise to just turn off the red light at this point for the actual running current value of about 103%. Run / Operation Indicator:Relay Trip: Orange LEDPower / normal operating status: Green LEDManual / Electric ResetWith test button held down,the orange LED is on and the product will trip after O-TIME.The relay will be de-energized when RESET button is pushed or the control power is disconnected.SetAfter the installation is complete the as follows.Set knob: D-TIME(Delay Time) Set two to three seconds longer than the motor starting time.Set knob: O-TIME(Over-current run time) Set less than the motor's endurance time with over-current.Set knob: Load(Rated Current) Set over 110% of the motor's rated current of under 120% of its operating currentTEST InstructionWith test button held down,the orange LED is on and the product will trip after O-TIME.The relay will be de-energized
