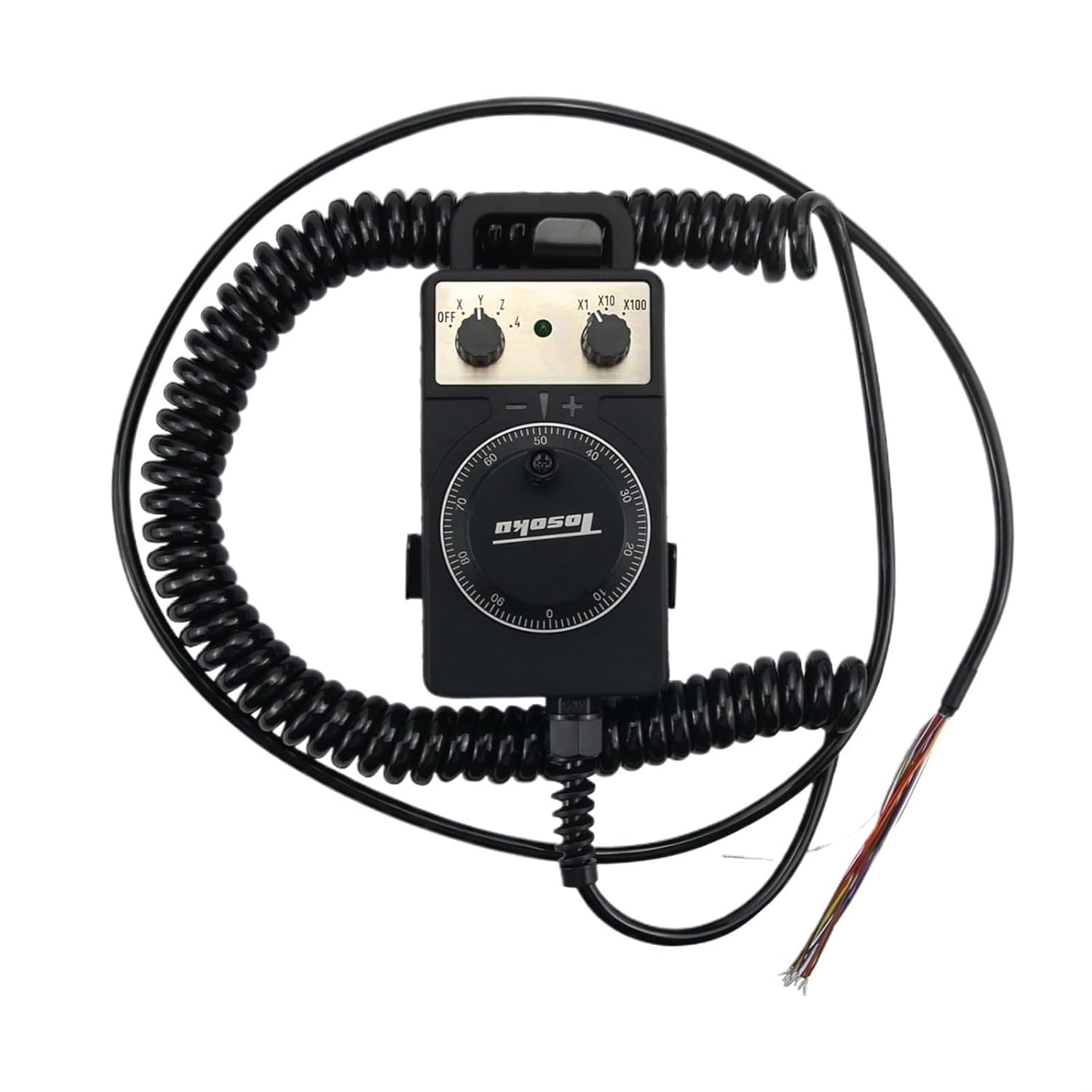

Electronic Handwheel Engraving Machine Hand Wheel Handle Pulse Generator(HC121)

Pulse GeneratorsElectronic Handwheel Engraving Machine Hand Wheel Handle Pulse GeneratorHC115 Descriptions:- Compact, thin-line and lightweight (26mm)- Axis/Multiplication selection can be set according to customers' requirement- Sealed structured box- compliant (box/cord)- Exclusive easy-to-attach holder as a standard accessory- Rubber magnet for optionSpecifications:General:- For and other system- Model: HC115 HC121- Voltage: 5V- Output resolution 100- A, B Phase outputBody:- Dimension: 124x73x26mm- LED Visible Indicator: DC24V Green- Noise Immunity EN50082-2 compliantEnvironmental Specifications:- Operating temperature: -10 to +60; 14 to 140- Storage temperature: -40 to +70; 40 to 158Curl Cord:- 21 core cablePackage Included:- 1 x MPGNote:- It is not the one for .HC121 Features:- The most compact model of all our MPG series, developed for usage in numerous industrial areas.- Compact, thin-line and lightweight (26mm)- Axis/Multiplication selection can be set according to customers' requirement- Sealed structured box- compliant (box/cord)- Exclusive easy-to-attach holder as a standard accessory- Rubber magnet for optionBody:- Dimension :124×73×26(mm)*- LED Visible Indicator: DC24V Green- Noise Immunity EN50082-2 compliantCurl Cord:- 19/25-conductor shielded cable- 19-conductor: select from 2m/6.6ft, 3m/9.8ft, 4m/13.1ft, 5m/16.4ft- 25-conductor: select from 3m/9.8ft, 5m/16.4ft- (We will select either 19 or 25-conductor in accordance with required functions)Specifications:- Model: HC121- For and other system- Voltage: DC12V- Output resolution: 25PPm- A, B Phase outputPackage Included:- 1 x Set of MPGNote:- It is not an one. Please make sure that you don't mind before purchasing. Thank you!

• Pulse Generators
• Electronic Handwheel Engraving Machine Hand Wheel Handle Pulse Generator
