Capacitor Tester ESR LCR Capacitance Ohm Meter Professional Measuring Capacitance Resistance Capacitor Circuit Tester

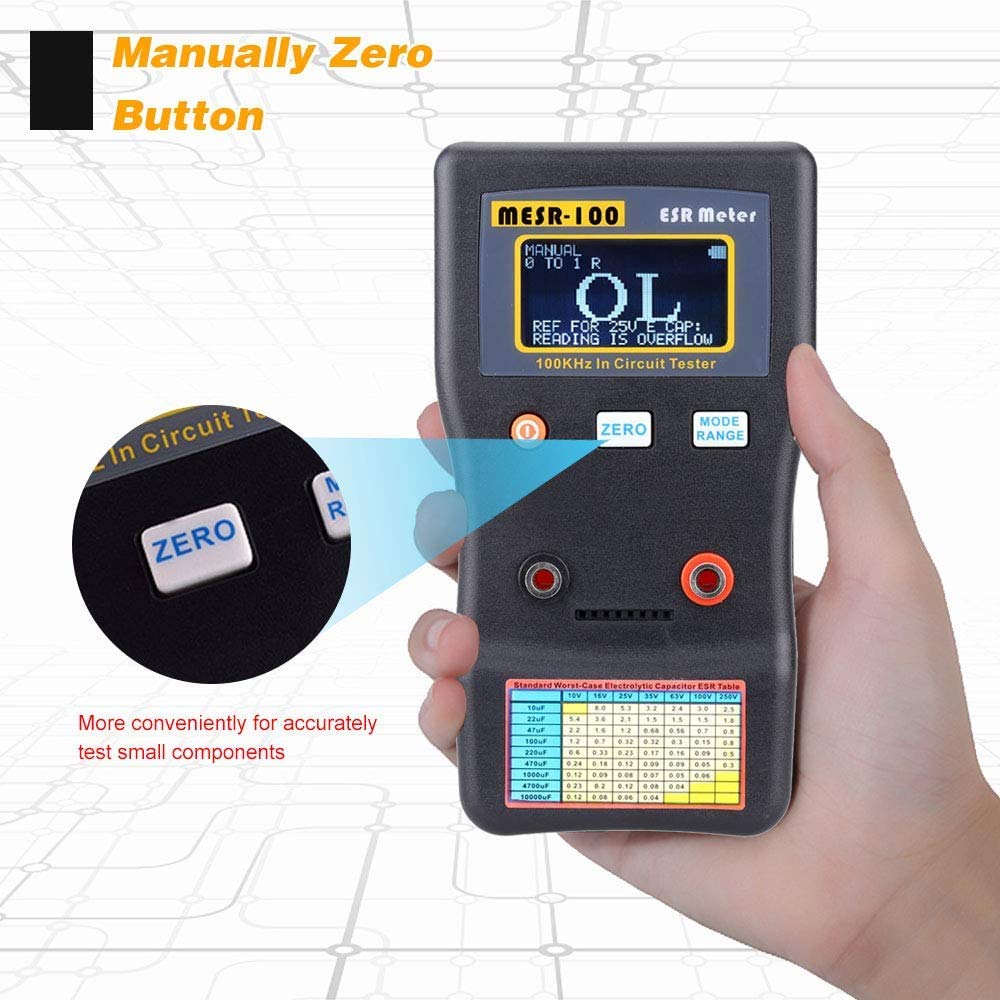

This auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.0R, support in circuit testing. Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer. Powerful test function：Measurement range from 0.001 to 100.0R, support IN CIRCUIT test, can apply DC or peak-to-peak value of less than 15mV on a good capacitor, and measure ESR value with true 100 KHz sine wave.Auto Range or Manual Range, You can Easily Select the Mode by Pressing Measuring Button; You can Easily Select the Mode by Pressing SELECT Button until the Continuity Symbol Appears on the Screen. It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C). The impedance become small, and we can then measure the true series resistor value.Using this theory, we can measure the capacitor is bad/ damaged or good in condition. Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test. During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not. Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check. Precision range : 0.000 to 1.000R 1% + 2Digit ~ 0.4s 1,000 to 10.00R 1% + 1Digit ~ 0.4s 10.00 to 100.0R 2% + 1Digit ~ 0.4s Test the capacitor : Tested with 1,10, 100R Auto mode take 0 to 2s. During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not. Package List : 1 * Capacitance Meter 2 * Test Clips 1 * User Manual Size : Item Size: Approx 14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2in Item Weight: Approx 139.6g / 4.9oz Package Size: Approx 17 * 9 * 5cm / 6.7 * 3.5 * 2.0in Package Weight: Approx 218g / 7.7oz
