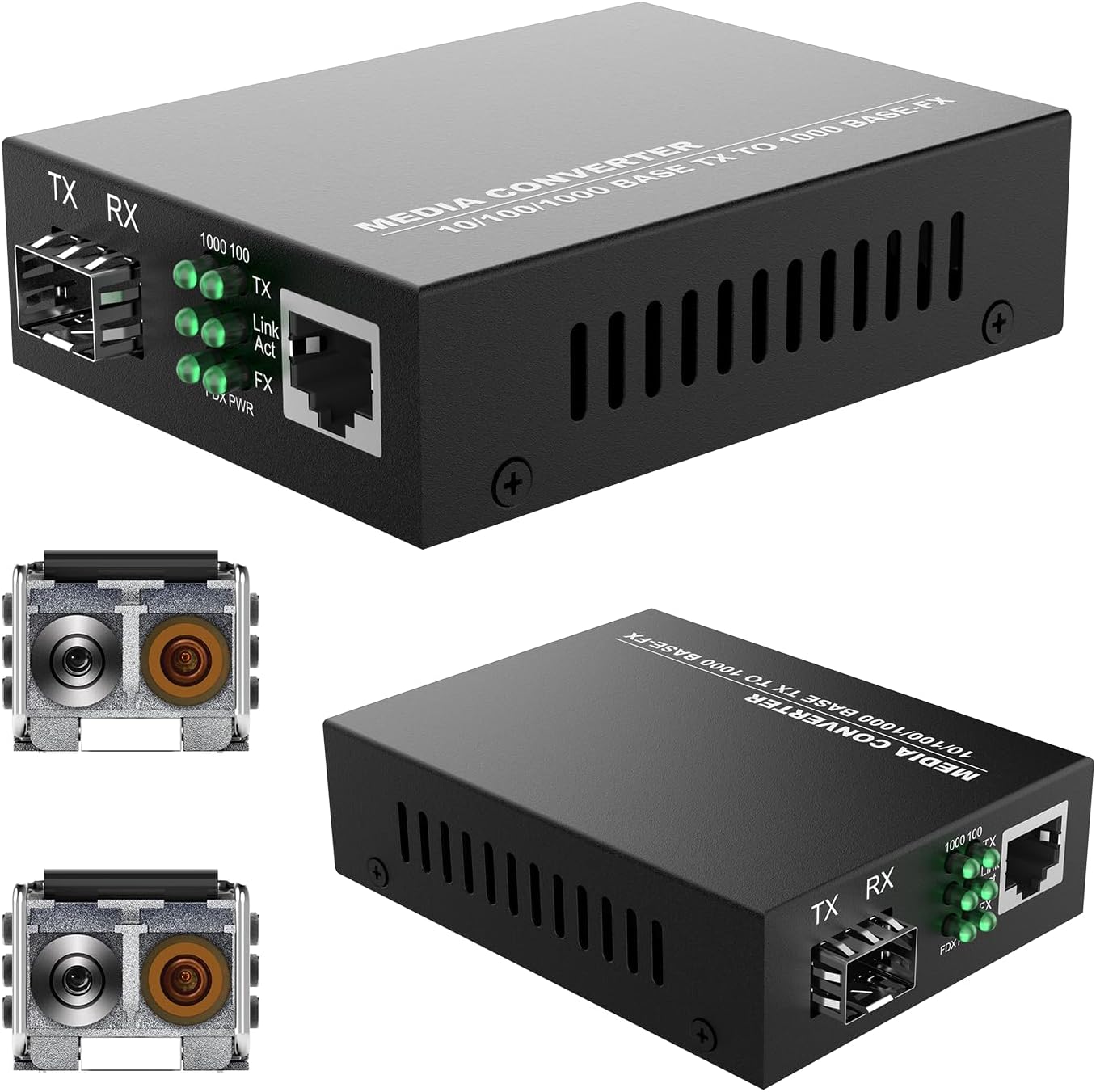

2Pack SFP LC SingleMode Fiber to Ethernet Media Converter, Included 2PCS Bidi SFP Dual LC Gigabit Transceiver Modules, 1.25Gbps, 1000Base-LX to 10/100/1000Base-TX, 1310nm, SMF, Up to 20KM Transmission

Product Overview: Enhance your network capabilities with our comprehensive Gigabit Ethernet Fiber Media Converter Kit. This kit includes single-mode dual-mode transceiver modules (1000BASE-LX) paired with SFP connectors, extending network coverage up to a maximum of 20 kilometers for reliable connections. Package Includes: - 2x Gigabit Ethernet Fiber Media Converters - 2x SFP BiDi LC Single-Mode Dual-Mode Transceiver Modules (up to 20km transmission distance) - 2x DC Power Adapters (Output Voltage: 5V DC/1A) - 1x Product Manual and Multi-Language Quick Installation Guide Key Features: - Optical Port Data Rate: Supports 1.25Gbps, seamlessly converts 10/100/1000Base-Tx to 1000Base-LX dual LC fiber gigabit media converter. - Interfaces: Dual LC ports and RJ45 port supporting 10/100/1000M auto-negotiation. - Fiber Type: Single-mode, ensuring compatibility with various fiber networks. Fiber Connector: Dual LC fiber, maximum transmission distance of 20 kilometers. Included power adapter weight: 0.35kg. Excellent Functions: - Superior Heat Dissipation: Designed with vents on both sides and a metal enclosure for improved heat dissipation, low power consumption, and long lifespan. - Lightning Protection and Anti-Interference Capability: Strong anti-interference capability ensures high-speed stable signal conversion. - Standalone Design: Compact plug-and-play setup for easy installation. Dimensions: 95x72x27mm. - Power Adapter Safety Certification: UL/EN60950 GB4943 compliant, power consumption ≤3 watts. External power input: AC100V~240V. - High-Quality Conversion Chip: Ensures reliable operation within a temperature range of 0°C to 60°C and storage temperature range of -20°C to 70°C. Humidity tolerance: 5% to 90% RH. Wide Applications: - Data Center Expansions: Efficient network connection and expansion solutions. - Enterprise Network Upgrades: Stable connectivity solutions for large-scale networks. - Video Surveillance Systems: Supports long-distance high-definition video transmission, ensuring system stability. - Telecommunications Network Applications: Reliable network coverage and transmission solutions for telecommunications operators. - Industrial Automation: Supports network communication needs in industrial environments, ensuring stable operation of production equipment. LED Indicators: - FP (Fiber Port): Lights up at 1000Mbps fiber speed, off otherwise. - TP (TP Port): Lights up at 1000Mbps TP speed, off otherwise. - Link/ACT: Left side indicates fiber port link/activity, right side indicates TP port link/activity, flashes during data transmission. - FDX (Full Duplex): Indicates active TP full-duplex mode (on), half-duplex mode (off). - PWR (Power): Indicates DC power status (on when powered, off when not powered). Certification and Power Supply: - UL Certified Power Supply: Input Voltage: AC100V240V or DC3672V, 50/60Hz. Output Voltage: 5V1A. Connector: DC Socket. Product Size: Compact design (Dimensions: 93 x 71 x 27mm), offering flexible installation options. Weight: 0.5kg.

• Complete Package: Includes 2 Gigabit Single-Mode Fiber Ethernet SFP Slot media converters equipped with 2 SFP BiDi LC Dual Single-Mode transceivers, 2 AC/DC power adapters, and a user manual. The power adapters support a wide voltage range (100V-240V) and provide a stable 5V-1A output, UL certified for safety and reliability.

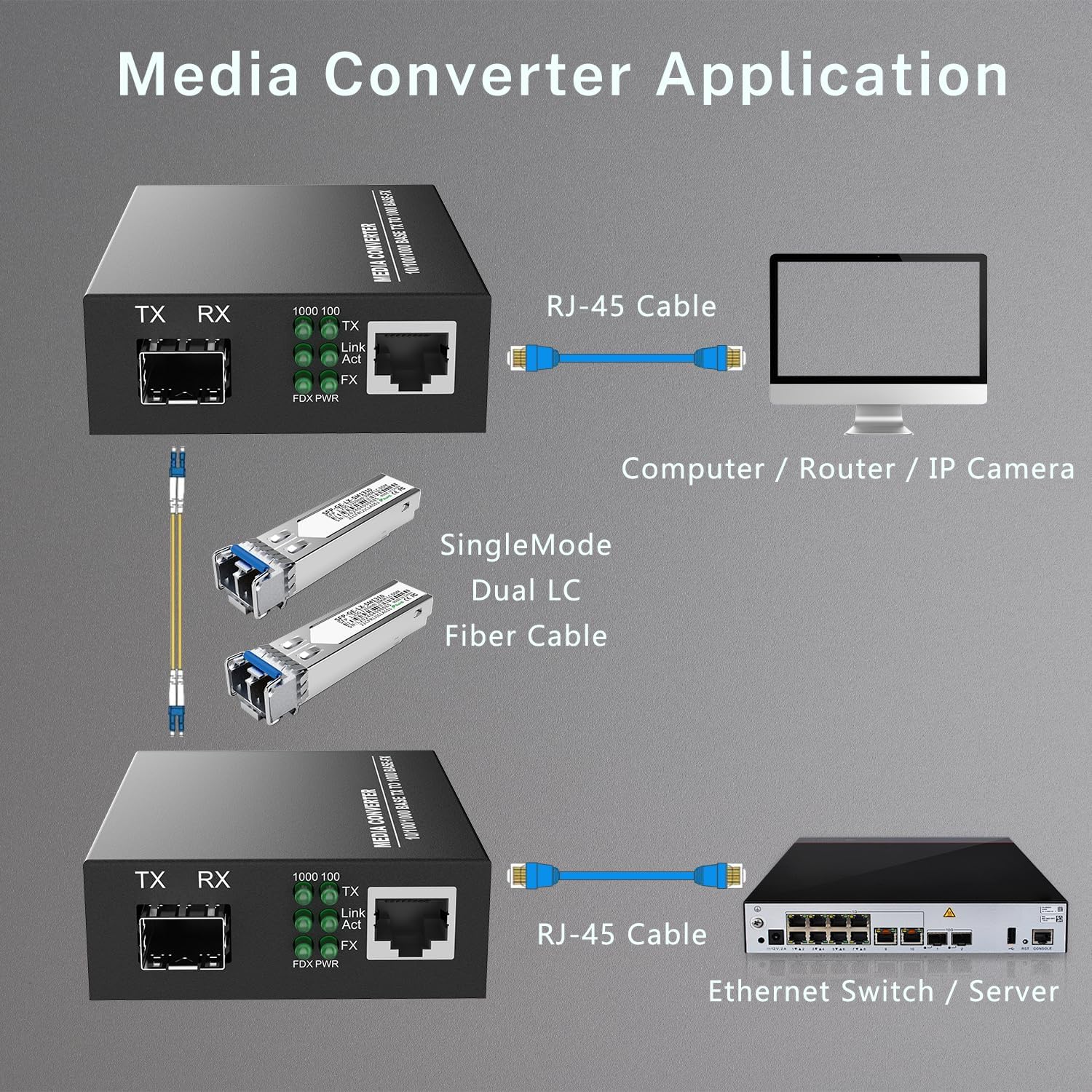

• Seamless Conversion and Application Scenarios: This fiber optic to Ethernet media converter kit seamlessly converts 1000BASE-LX LC fiber to 10/100/1000 Base-T RJ-45 copper media and vice versa, ensuring versatile connectivity solutions. It supports bidirectional transmission, handling both send and receive data simultaneously to meet high-efficiency data transmission needs. Operating at a transmission rate of 1.25Gbps, it complies with IEEE 802.3/802.3u/802.3z/802.3ab standards, ensuring compatibility with existing network devices.
• Fiber Optical Port: Features a 1.25Gbps SFP port supporting BiDi LC Dual Single-Mode transceivers, extending connectivity up to 20 kilometers (includes 2 SFP LX transceivers). Designed for single-mode fiber (SMF), it supports UTP/STP Cat.5e cables for up to 20 kilometers.
• Extended Transmission Distance: Extend link distances up to 20 kilometers (12.4 miles) via single-mode fiber (SMF, LC, duplex) with this Ethernet fiber media converter. Widely applicable in data centers, enterprise network expansions, surveillance systems, and more, providing stable and reliable network connectivity and expansion solutions.
• Plug and Play with Auto-Negotiation: Enjoy hassle-free setup with plug-and-play functionality—simply connect the optical and RJ-45 ports for immediate use. The converter supports auto-negotiation for Gigabit connections over the RJ-45 port, facilitating seamless integration into various network environments. Status LEDs (TX, FX LINK/ACT, POWER, FDX) provide real-time network monitoring. Supports jumbo frame sizes up to 9K bytes and operates reliably in temperatures ranging from 0°C to 60°C.
