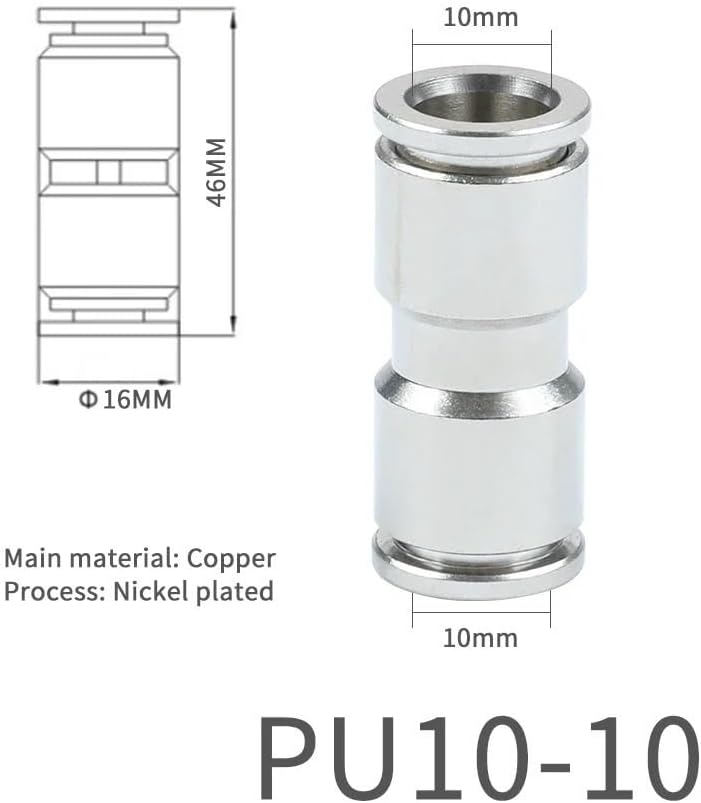

1/5/10pcs Metal Pneumatic Connection Air Tube Nickel Plated Brass Fitting Fittings Hose Connector PU 4mm 6mm 8mm 10mm 12mm Set(PU10-10,5pcs)

Material: Nitrile Rubber and Metal CopperProcess: Nickel platedFluid Type: Clean Air, Vacuum, No Toxic GasApplicable Hose: SolfNylon, PolyurethaneNormal Operating Pressure: 0~16kgf/cm2(0~1.6MPa / 0~16bar)Max.Operating Pressure: 20.0 bar(2.0MPa)Negative Pressure: -750mmhg (10Torr)Ambient And Fluid Temperature: -20~120 (-4~248)Cautions:1. Cleaning: Clean the piping before connection to remove debris.2. Tubing Cut: Ensure a perpendicular cut without scratches on the tubing's outer diameter.3. Pipe Length: Avoid excessive bending; select a proper pipe length.4. Connection: After connecting, pull the tubing gently to check its seal.5. Release: Push evenly on the release button flange for proper tubing withdrawal.6. Removal: Avoid rotating the tubing fully during removal.7. Assembly: Ensure no debris enters when screwing pipes and fittings together.Safety Instructions:1. Pressure: Ensure zero pressure in the tubing before removal.2. Spatter Zones: Avoid standard fittings in spatter-producing areas.3. Monitor Conditions: Stay within specified pressure and temperature ranges.4. Environment: Avoid corrosive gases, chemicals, and extreme conditions.5. Placement: Avoid areas with heavy vibrations or shocks.6. Direction: Install tubing in the correct one-way direction.

• Material: Nitrile Rubber and Metal Copper
• Process: Nickel plated
• Fluid Type: Clean Air, Vacuum, No Toxic Gas
• Applicable Hose: SolfNylon, Polyurethane
• Normal Operating Pressure: 0~16kgf/cm2(0~1.6MPa / 0~16bar)
• Max.Operating Pressure: 20.0 bar(2.0MPa)
• Negative Pressure: -750mmhg (10Torr)
• Ambient And Fluid Temperature: -20~120 (-4~248)
